First of all, let’s understand what we are going to talk about.
Invented by Microsoft in the early ’90s and abbreviated as XHR , X ML H ttp R equest is a set of APIs that can be used by Web browser scripting languages, such as JavaScript to transfer data to and from a Web server using HTTP.
XHR can be used with protocols other than HTTP and data can be in the form of not only XML , but also JSON , HTML or plain text.
All modern browsers have a built-in XMLHttpRequest object to request data from a server. With an XHR object you can:
We are going to use a fake online REST API for testing and prototyping like reqres (another good one is JSONPlaceholder), those are great for tutorials, testing and code examples. In this post you will learn:
We need to create a new xhr object by instantiating XMLHttpRequest:
const xhr = new XMLHttpRequest();
this is a built-in constructor function in your browser, so you don’t need to add any special library or package.
int the next step we need to prepare the HttpRequest to be sent , using a function that takes two arguments:
1) HTTP Method used
2) URL to which you want to send that request
xhr.open('GET', 'https:reqres.in/api/users')
Now we can send our preconfigured request :
xhr.send();
This theoretically should be all we need to do, infact the request is sent to the URL using GET method and we are able to receive the response, but we are not there yet. We need to use the response.
Little preamble here
There are two main ways to actually listen to the onload event in our xhr request, wich are:
/*1*/ xhr.addEventListener("load", reqListener);
/*2*/ xhr.onload = () => { };
We are going to use the second one as it has a broader browser support.
So the onload function will trigger when we receive a response, in order to get the data, we could log the response in this way:
xhr.onload = () => { console.log(xhr.response); };
in this case will see in the console log a bunch of data printed like a string, but it’s actually a JSON response. To convert this response in a Javascript object, in order to manipulate it, we can parse it:
xhr.onload = () => {
const data = JSON.parse(xhr.response);
console.log(data);
};
Another way to parse the JSON response is to set the responseType attribute to ‘json’:
xhr.responseType = 'json';
xhr.onload = () => {
const data = xhr.response;
console.log(data);
};
Our code should look like this:
const xhr = new XMLHttpRequest();
xhr.open('GET','https://reqres.in/api/users');
xhr.responseType = 'json';
xhr.onload = () => {
const data = xhr.response;
console.log(data);
};
xhr.send();
Let’s say that we want to crate a new user, we would need to send data in order to specify the name and the job of the new user.
The only thing that changes is the xhr.open() call, as we need to modify our request method to POST, set the URL for the request and add the data for the user we want to create:
xhr.open('POST','https://reqres.in/api/users',{
"name":"morpheus",
"job":"leader"
});

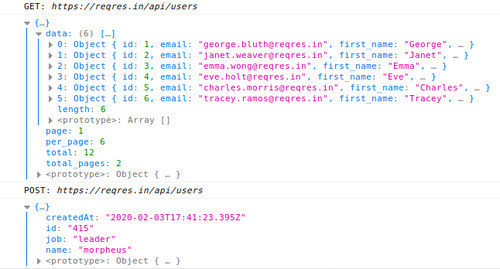

reqres.in will respond to our request with a 2xx status and sending us extra information about our successful user creation, with a response object like this:
createdAt: "2020-02-03T17:10:31.110Z"
id: "644"
Simply put: A callback is a function that is to be executed after another function has finished executing — hence the name ‘call back’.
— Brandon Morelli in this beautiful article about callbacks.
(Promises only work natively in modern browsers)
Promise-based XHR may help you avoid deeply nested callbacks and allowing method chain using .then() Here’s what a traditional callback model might look like:
first(a,function(b){
second(b,function(c){
third(c,function(d){
fourth(d);
});
});
});
And what that might look like using a Promise-based approach:
first(a)
.then(function(b){
return second(b);
})
.then(function(c){
return third(c);
})
.then(function(d){
return fourth(d);
})
.catch(function (error){
// error at any point of the chain
});
pretty clearer, uh?
Okay, now that we understood the basics it’s time to make the things more professional by creating a function to receive/send data through HttpRequests:
const sendHttpRequest = ( method , url ) => {
const xhr = new XMLHttpRequest();
xhr.open( method , url );
xhr.responseType = 'json';
xhr.onload = () => {
const data = xhr.response;
console.log(data);
};
xhr.send();
};
Not there yet. Let’s add promises:
const sendHttpRequest = (method, url) => {
//Adding promise
const promise = new Promise((resolve, reject) = > {
const xhr = new XMLHttpRequest();
xhr.open(method,url);
xhr.responseType = 'json';
xhr.onload = () = > {
resolve(xhr.response);
};
xhr.send();
});
//returning the promise
return promise
};
//Using .then() to retrieve data
const getData = () => {
sendHttpRequest('GET','https://reqres.in/api/users')
.then(responseData = > {
console.log(responseData);
});
};
We can send POST requests as well, but some changes to sendHttpRequest must be done:
//adding data parameter
const sendHttpRequest = (method, url, data ) => {
const promise = new Promise((resolve, reject) => {
const xhr = new XMLHttpRequest();
xhr.open(method,url);
xhr.responseType = 'json';
//signals that we are appending json data in POST
if (data){
xhr.setRequestHeader('Content-Type','application/json');
}
xhr.onload = () => {
resolve(xhr.response);
};
//appending json data
xhr.send(JSON.stringify(data));
});
return promise
};
//Sending POST request
const sendData = () => {
sendHttpRequest('POST','https://reqres.in/api/users',{
name: "morpheus",
job: "leader"
}).then(responseData => {
console.log(responseData);
})
};
Nice, we can now call getData() and sendData() to test them out:
So far, so good. But what about errors?
First things first, before handling xhr errors we need to understand a little difference: there are two main types of errors:
Response errors The response fails due to network connection or invalid url.
Status errors We are actually able to retrieve a response from the sever, but with an error status (like 400); that’s because the server didn’t recognize our request (e.g. we missed a parameter in a POST request).
Let’s modify our code to handle this errors:
const sendHttpRequest = (method, url, data) => {
const promise = new Promise((resolve, reject) => {
const xhr = new XMLHttpRequest();
xhr.open(method,url);
xhr.responseType = 'json';
if (data){
xhr.setRequestHeader('Content-Type','application/json');
}
xhr.onload = () => {
//rejecting promise on status error
if(xhr.status >= 400) {
reject(xhr.response);
} else {
resolve(xhr.response);
}
};
//rejecting promise on response errors
xhr.onerror = () => {
reject('Something went wrong!');
};
xhr.send(JSON.stringify(data));
});
return promise
};
const sendData = () => {
sendHttpRequest('POST','https://reqres.in/api/users',{
name: "morpheus",
job: "leader"
}).then(responseData => {
console.log(responseData);
//catching and printing errors
}).catch(err => {
console.log(err);
});
};
Now if we turn down the internet connection and try to call sendData() we will get in log something went wrong!, same if we try to reach an invalid url.
Depending on the POST request, if we try to omit a field in the data to send:
const sendData = () => {
sendHttpRequest('POST', 'https://reqres.in/api/register', {
email: 'eve.holt@reqres.in'
// password: 'pistol'
}).then(responseData => {
console.log(responseData);
}).catch(err => {
console.log(err);
});
};
we will get a status error error: “Missing email or username”
You can simply visualize the data using a function that appends DOM elements
// Visualize in HTML the data from GET requests
const visualize = (data) => {
// Referring to an existing element in HTML code
// (in this case <div id="data-from-xhr"></div>)
let div = document.getElementById('data-from-xhr')
// Clear div element
div.innerHTML = ''
// For every data element:
data.map(userData => {
// Create DOM elements
let user = document.createElement('div')
let avatar = document.createElement('img')
let email = document.createElement('p')
let fullName = document.createElement('p')
// Fill DOM elements with passed data
avatar.src=userData.avatar
email.innerText = userData.email
fullName.innerText = userData.first_name + userData.last_name
// Create a user node each one with avatar, email and fullName
user.appendChild(avatar)
user.appendChild(email)
user.appendChild(fullName)
// Append the user node to div in HTML
div.appendChild(user)
})
};

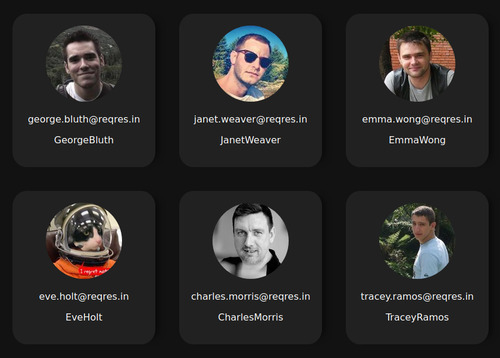

with some css it should look like this:
Request states: We can track the request state by using onreadystatechange event:
xhr.onreadystatechange = function () {
if(xhr.readyState == 1) {
console.log('Request started.');
}
if(xhr.readyState == 2) {
console.log('Headers received.');
}
if (xhr.readyState == 3) {
console.log('Data loading..!');
}
if (xhr.readyState == 4) {
console.log('Request ended.');
}
};
Aborting Request abort an XHR request anytime by calling the abort() method:
xhr.abort(); // cancel request
Progress event Triggered periodically during the response download, it can be used to report progress for heavy network requests.
xhr.onprogress = (event) => {
// event.loaded returns how many bytes are downloaded
// event.total returns the total number of bytes
// event.total only if server sends `Content-Length` header
console.log(`Downloaded ${event.loaded} of ${event.total}`);
}
